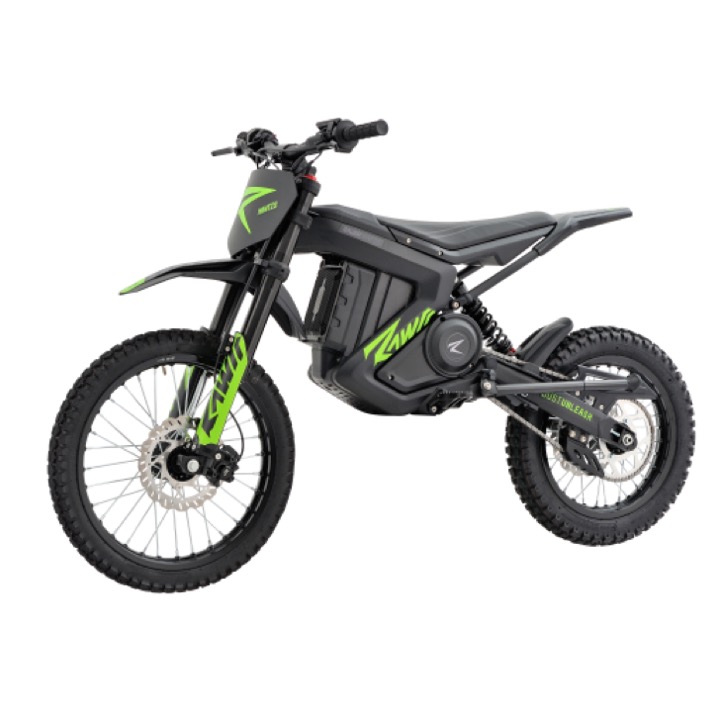

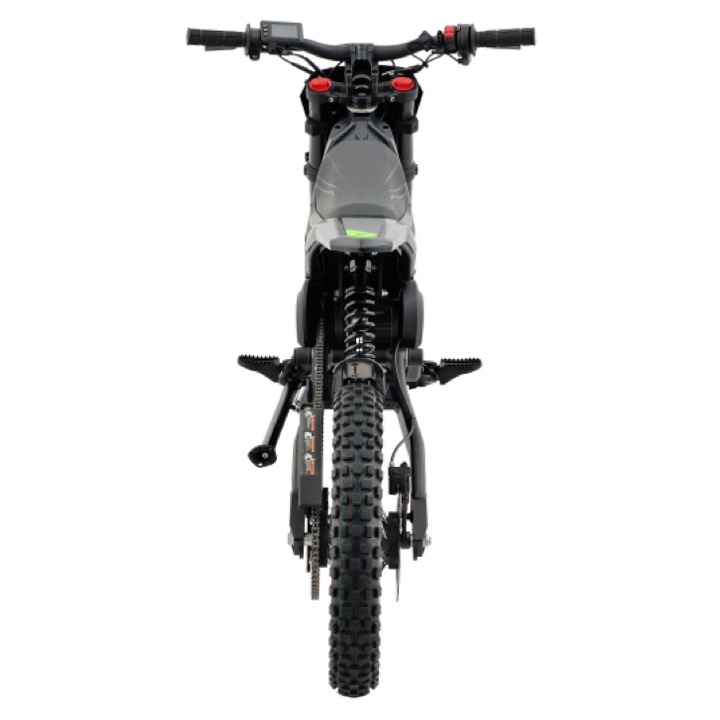

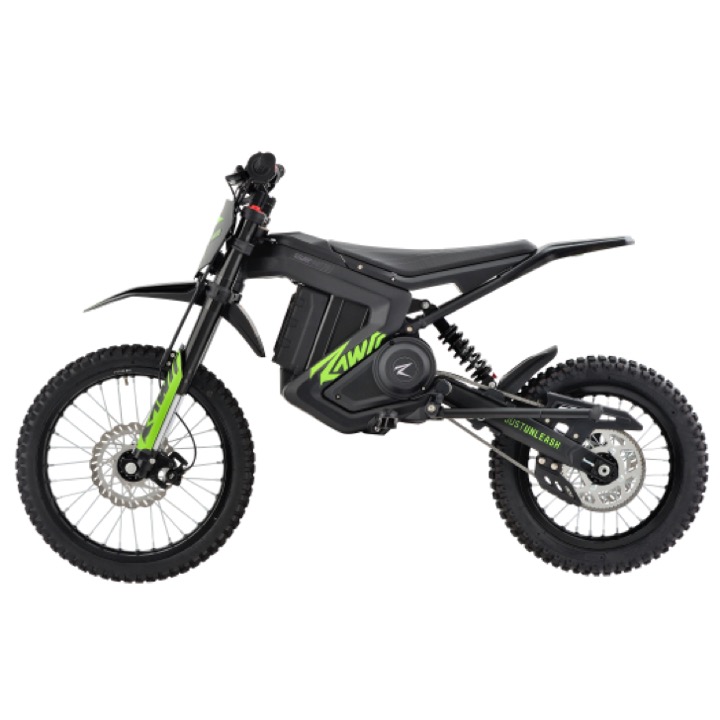

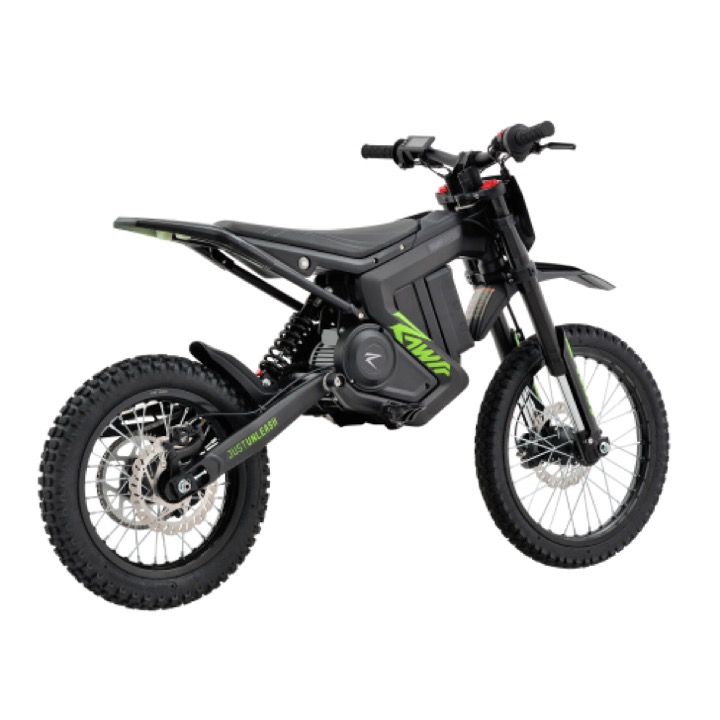

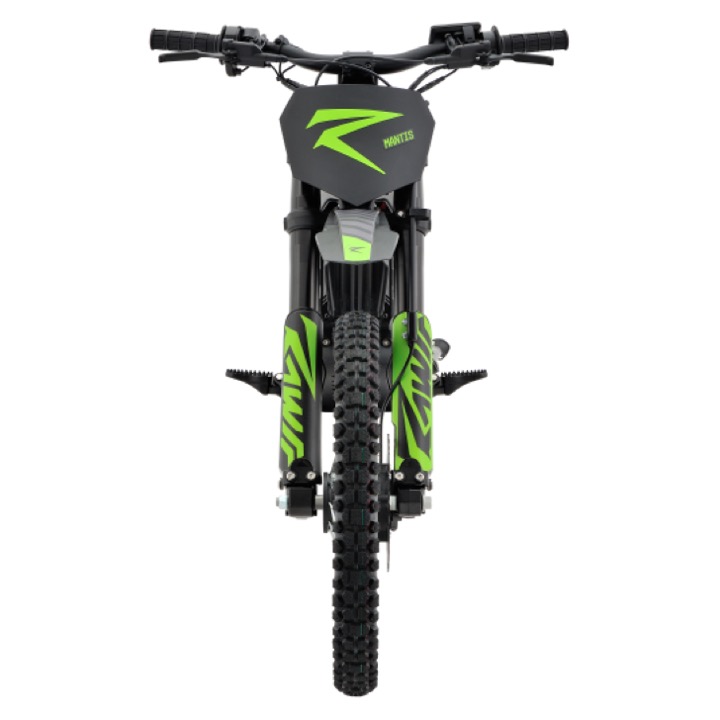

Rawrr Mantis Mini R
£2,599.99
Rawrr Mantis Mini R
£2,599.99
2000 watts
72V battery
3 speed modes
Available Shipping Options:
- In-Store Collection: Free
- UK 48hr £59.99
Specification
Additional Description
Warranty
Delivery Information
Reviews
Specification
Specification:
- Measurements: 1580mm*671mm*960mm
- Maximum Load: 75 Kgs
- Vehicle Weight: 55 Kgs
- Motor Type: PMSM
- Rated Output Power: 3000W (Max: 6500W)
- Peak Torque: 210 N·m
- Motor Maximum Speed: 4200 RPM
- Transmission Ratio: 1:5.3
- PowerMode:1/2/3
- Cooling Method: Air-Cooled
- Battery Capacity: 72V/20AH (1440WH)
- Battery Charging Time: 3-6 Hours
- Cruising Range: 50 km (at 25 km/h)
- Charger Voltage: 110-240VAC 50/60HZ
- Charging Power: 432W
- Frame: Alu. 6061
- Handlebar: Alu. φ22 mm
- Shock Absorber (Front/Rear): F: Aluminum cylinder hydraulic, R: Spring + Hydraulic
- Damping Travel (Front/Rear): 100 mm / 45 mm
- Brakes (Front/Rear): F: Disc brake 203mm, R: Disc brake 203mm
- Tire Size (Front/Rear): F: 70/100-14, R: 80/100-12
- Chain Type: 06B
- Wheelbase: 1073mm
- Height of Handlebar: 950mm
- Ground Clearance: 240 mm
- Seat Height: 760 mm 735 mm
- Top Speed: 70 km/h
- Acceleration: 0-30 km/ 1.8s, 0-50 km/3.6s, 0-75 km/10s
Additional Description
| Weight | 29 kg |
|---|---|
| Dimensions | 113 × 35 × 56 cm |
Warranty
Please ensure you check the product upon delivery to confirm that all parts have been received and that the product is working fully. If there are any issues, please notify us as soon as possible.
Comes with a 6 month manufacturer defect warranty.
These products are intended for light off road use only. Any damage caused by misuse may void the warranty.
Water, wear and tear or accidental damage is not covered by the warranty.
Delivery Information
Next Day 7am-7pm
Next Day before 12pm
Saturday Delivery available if ordered before 12pm Friday
All items are dispatched the same day if ordered before 2pm Monday-Friday
We use top rated companies for our delivery service and all our items are Tracked and Insured
